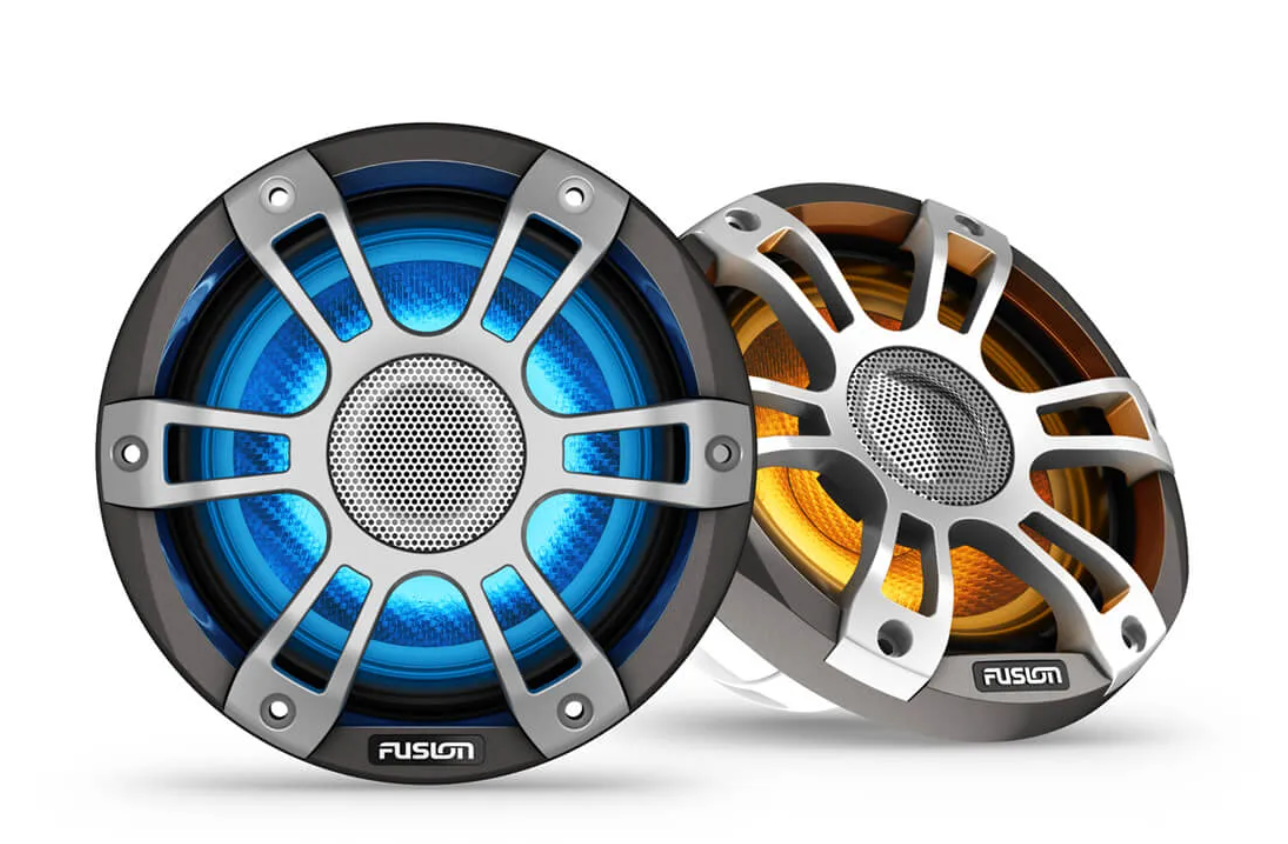

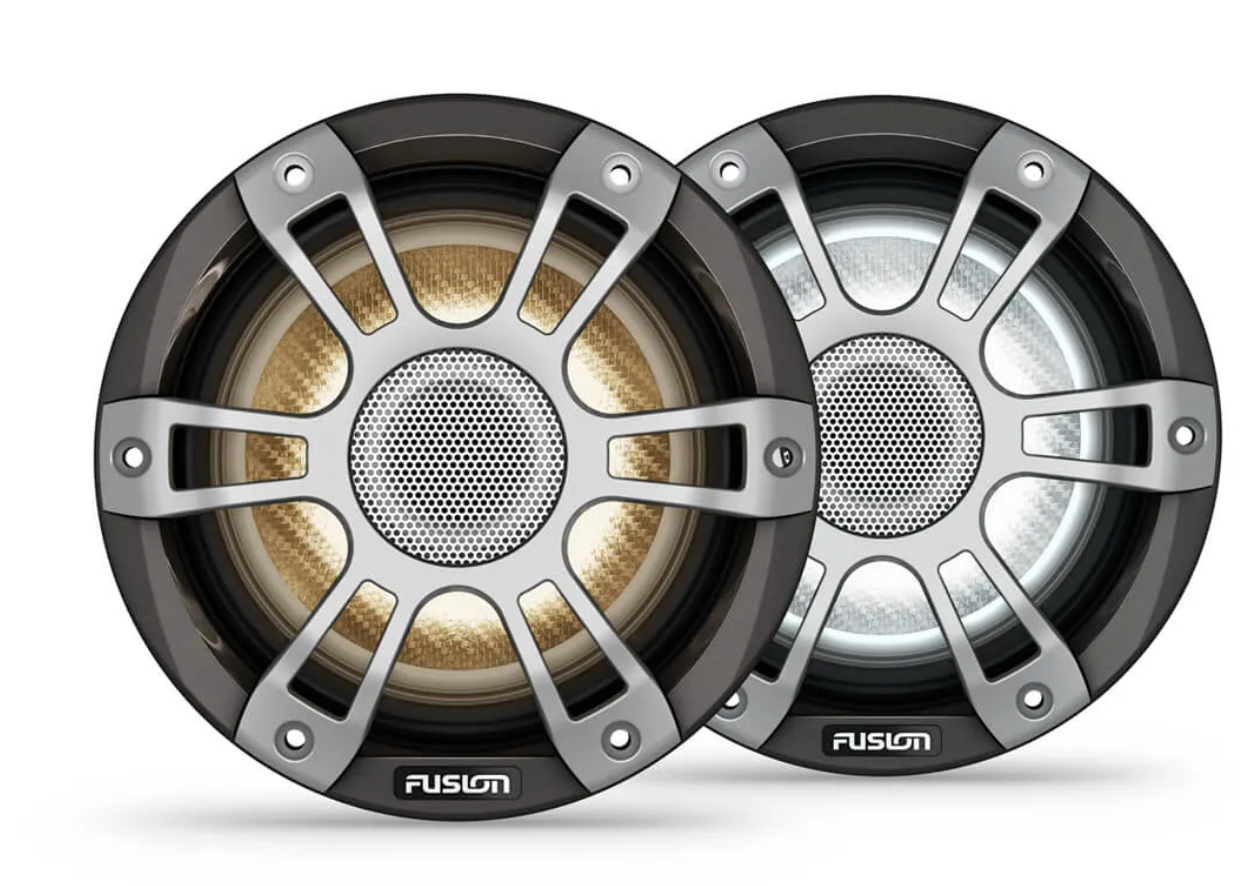

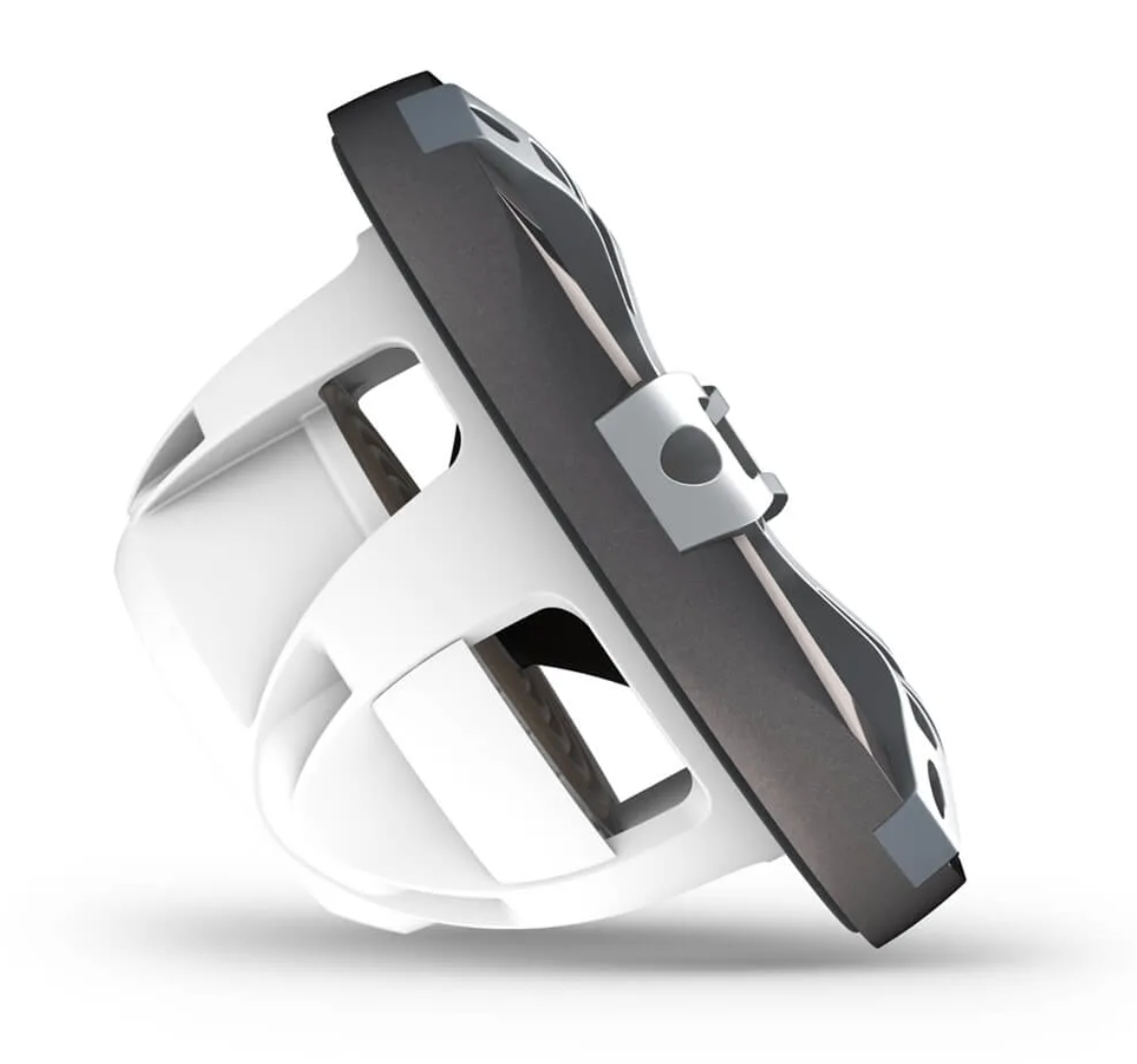

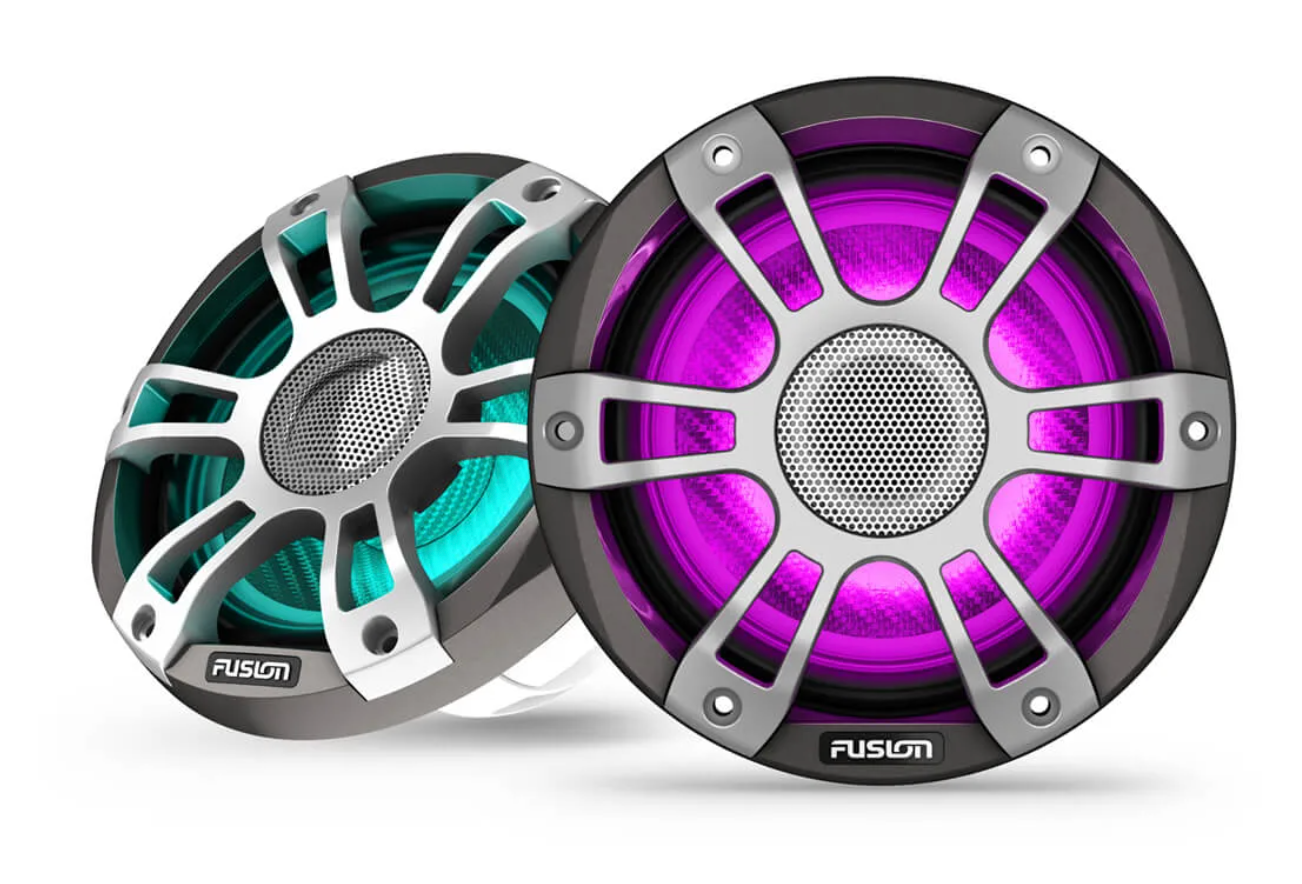

Fusion Marine Signature 6.5 inch 3i Grey Grill 230W CRGBW Coaxial Sports Speakers 010-02771-11
Fusion Marine Signature 6.5 inch 3i Grey Grill 230W CRGBW Coaxial Sports Speakers 010-02771-11
Couldn't load pickup availability
Express Backorder Available
Shipping Timeframe
Shipping Timeframe
Ships within 24-48 business hours if "Low stock" and "In stock" (If status showing).
Ships in 3-5 days for custom products (Express Backorder Available status)
| Physical dimensions (diameter x depth) |
6.5" sports speaker: 6.93" x 4.11" (176 x 104.5 mm) |
| Weight (single unit) |
6.5" CRGBW sports speaker: 2.9 lbs (1.32 kg) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Peak power (Watts) |
6.5" speaker: 230 watts |
| RMS power rating (watts) |
6.5" speaker: 75 watts |
| Sensitivity (1 watt @ 1 metre) |
6.5" speaker: 90 dB |
| Frequency response |
6.5" speaker: 70 Hz–22 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (watts RMS) |
6.5" speaker: 30–90 watts/channel |
| LED lighting | yes, CRGBW (sports style with LED models only) |
| LED supply voltage | 10.8–16 VDC (sports style with LED models only) |
| LED load current @14.4 VDC (max) | 300 mA (sports style with LED models only) |
| Operating temperature range | 32–122 degrees F (0–50 degrees C) |
| Voice coil diameter |
6.5" speaker: 1.2" |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance |
6.5" speaker: 122" (310 cm) |
| Speaker connection | Flying lead with water-resistant 2-way connector, 5.9" (150 mm) |
| LED connection (sports style with LED models only) | Flying lead with water-resistant 6-way connector, 5.9" (150 mm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance |
6.5" speaker: 5.35" (136 mm) |
| Mounting depth clearance |
6.5" speaker: 3.11" (79 mm) |
Optimum enclosure recommendations |
|
| Sealed enclosure volume (fully filled with absorption material) |
6.5" speaker: 0.64 cubic ft (18 L) |
| Ported (vented) enclosure volume (lined with absorption material) |
6.5" speaker: 0.88 cubic ft (25 L) |
| Port diameter | 3" (76 mm) |
| Port length |
6.5" speaker: 6.4" (162 mm) |
