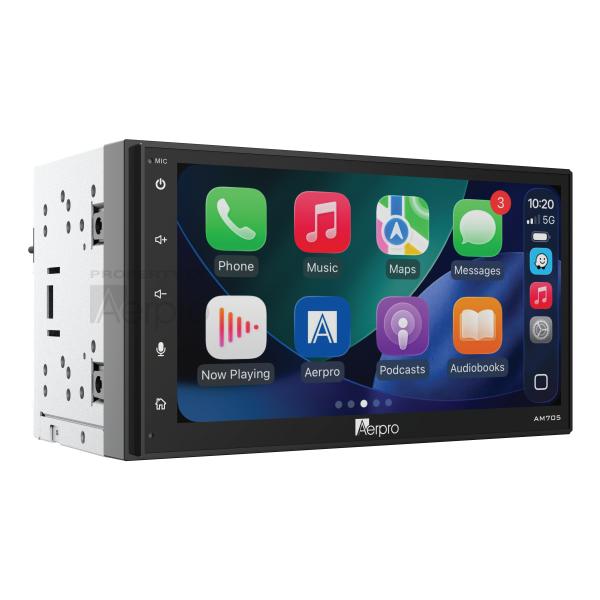

6.8" Multimedia Receiver with Wireless Apple Carplay & Android Auto AM705

Upgrade your dash with the latest Aerpro 6.8" Multimedia Double DIN Head Unit, designed to deliver modern smartphone connectivity, powerful audio performance, and everyday driving convenience. Featuring a vibrant 6.8" capacitive touchscreen with a crisp 1024x600 resolution, it provides smooth, responsive control and a clear display for maps, media, and menus.

Enjoy the freedom of Wireless and Wired Apple CarPlay & Android Auto, giving you instant access to navigation, music, calls, and messages without the hassle of cables. Simply hop in and your phone connects automatically, or use the rear USB input for wired connection with charging support. It is the perfect solution for safer, smarter driving.

Stay connected on the road with Bluetooth V5 hands-free calling and audio streaming, complete with HD Voice support, internal and external microphone options, and full phonebook and ID3 display integration. Stream your favourite playlists wirelessly while keeping your hands on the wheel and your focus on the road.

Designed with safety and flexibility in mind, this unit features dual 720P AHD camera inputs, allowing you to add a reverse camera plus an additional front or towing camera. Whether parking, hitching a trailer, or navigating tight spaces, you will benefit from improved visibility and confidence behind the wheel.

For audio enthusiasts, the Aerpro delivers impressive sound performance with 4 x 50W max power and 6 x 4V RCA preouts for front, rear, and subwoofer outputs. Fine-tune your system with a 13-band EQ, time alignment, low-pass filter, loudness control, and dedicated subwoofer level adjustment, ensuring clear, balanced, and powerful sound tailored to your vehicle.

Built into a universal Double DIN chassis, this unit suits a wide range of vehicles and includes mounting hardware, ISO wiring harness, external microphone, and GPS antenna for straightforward installation. With USB media playback support for popular formats and customisable 6-colour button illumination to match your interior, it is a complete multimedia upgrade for any modern vehicle.

SPECS:

• LCD Display:
  • Size: 6.8"
  • Resolution:1024x600
  • Touchscreen: Capacitive
  • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
• OS System: Linux
• DIN Size: 2 DIN Body (Double DIN)
• Power Output: 4CH x 50W (4 Ohm) MAX Power
• Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
• USB Inputs:
  • USB1 (Rear) Apple CarPlay - Android Auto with Charging Function (5V / 1.5 A)
  • USB2 (Rear): Media with Charging Function (5V / 1.5 A)
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Output: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • DAB: No
  • AM/FM (# of Presets): AM: 12 / FM: 18
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 522-1710KHz (9KHz Step)
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 4V, 6 RCA - 3 Pair (Front/Rear/Subwoofer)
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 13 Band EQ - 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor (Sold Separately)
  • OSD Language: English
  • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
• Inclusions:
  • Double Din Headunit
  • Double Din Metal Frame & Mounting Hardware
  • Headunit Plastic Trim
  • Wiring Harness with ISO Connection
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet
